function plot_ck_test

deeptime.plots.plot_ck_test(data: ChapmanKolmogorovTest, height=2.5, aspect=1.0, conf: float = 0.95, color=None, grid: CKTestGrid = None, legend=True, xlabel='lagtime (steps)', ylabel='probability', y01=True, sharey=True, **plot_kwargs)

Plot the Chapman Kolmogorov test.

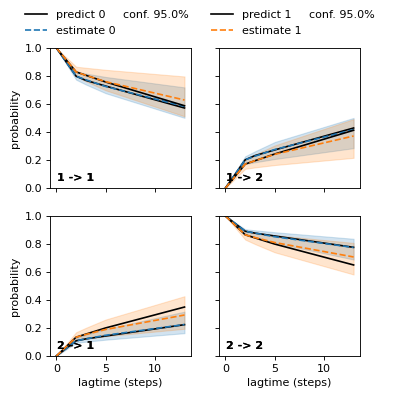

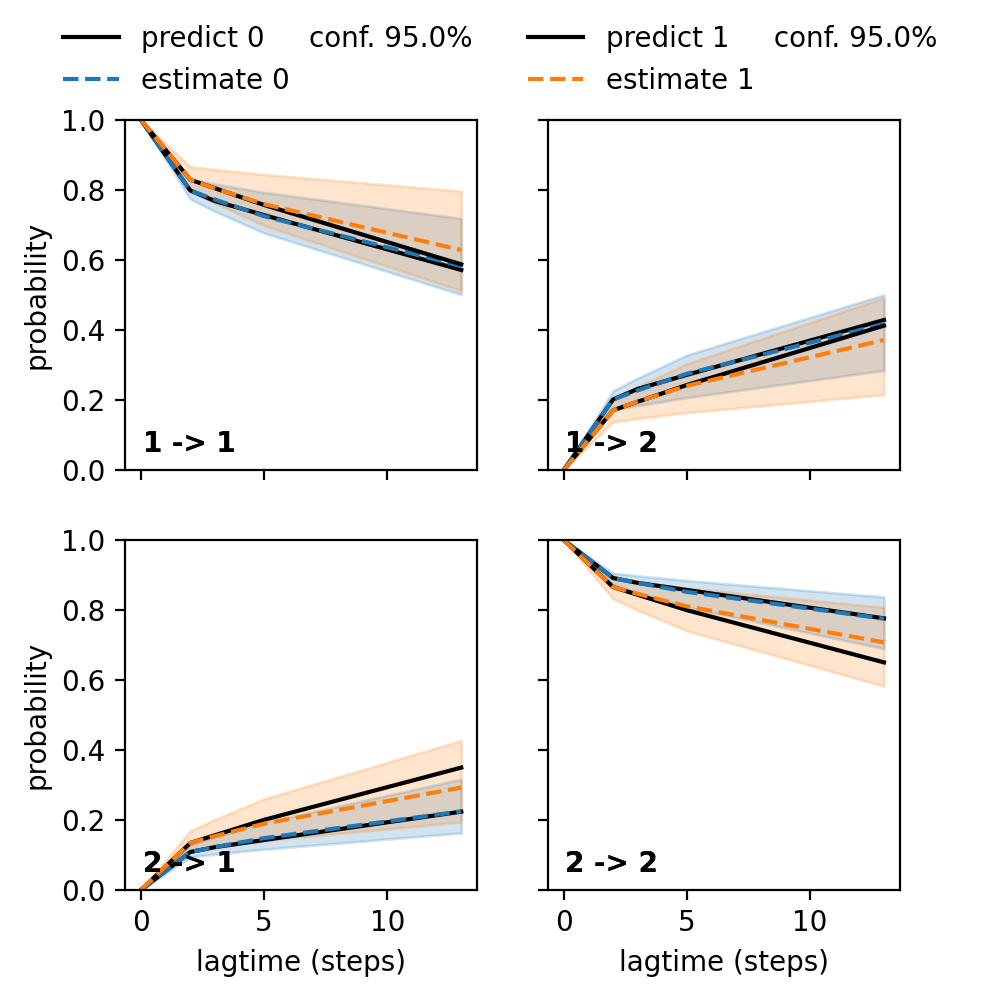

(Source code, png, hires.png, pdf)

../../_images/plot_ck_test.png
Parameters:
  • data (ChapmanKolmogorovTest) – Result of ck_test.

  • height (float, default=2.5) – Figure height.

  • aspect (float, default=1.) – Aspect of individual plots.

  • conf (float, default=0.95) – Confidence interval probability.

  • color (color, optional, default=None) – The color to use for predictions. Per default uses default colors.

  • grid (CKTestGrid, optional, default=None) – An already existing grid view of a ck-test to overlay.

  • legend (bool, optional, default=True) – Whether to plot a legend.

  • xlabel (str, default='lagtime (steps)') – The x label.

  • ylabel (str, default='probability') – The y label.

  • y01 (bool, optional, default=True) – Sets the limits of the y-axis to [0, 1].

  • sharey (bool, optional, default=True) – Whether to share the y-axes in case a new grid is created.

  • **plot_kwargs – Further optional keyword arguments that go into ax.plot.

Returns:

Object containing the CK test grid view.

Return type:

grid
